Productdetails:
|
Type number: | U84408 | Test wavelength: | 1310nm / 1550 nm |
---|---|---|---|
crosstalk: | ≥50dB | Connector form: | FC/APC |
Working power supply: | AC 220V | Monitoring port: | RS232、USB、Ethernet port |
Markeren: | LCD-display optische schakelaar,Optische Schakelaar met meerdere kanalen |

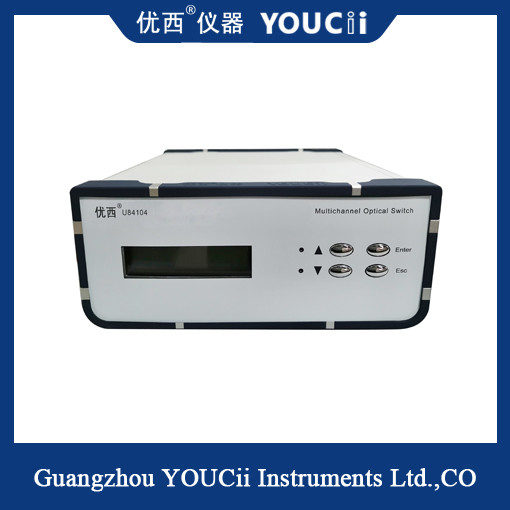

Multikanaals Optische Schakelaar Gebruikt LCD-scherm voor Breed Gebruik
Productintroductie
Optische schakelaar is een soort optische padbesturingsapparaat, dat de rol speelt van het besturen van het optische pad en het converteren van het optische pad. Het speelt een belangrijke rol in optische communicatietoepassingen.
De optische schakelaar wordt voornamelijk gebruikt in: multi-kanaals optische monitoring in optische transmissiesystemen, LAN multi-lichtbron/detector automatische omschakeling en optische sensing multi-point dynamisch monitoringsysteem; Het optische testsysteem wordt gebruikt voor optische vezels, optische apparaten, netwerk- en veldtechnische kabeltests; Installatie en afstelling van optische apparaten. De 4 x 8 optische schakelaar schakelt de vier ingangsroutes naar een van de acht uitgangsroutes.
Gebruiksaanwijzing:
(1) RS232 seriële poort, USB-interface, RJ45 Ethernet-interface: apparaatbewaking data-informatie communicatie-interface.
(2) AC INPUT voedingspoort: Aansluiten op AC 220V voeding.
(3) IN 1 tot IN 4: optische schakelaar ingangspoort.
(4) OUT 1 tot OUT 8: optische schakelaar uitgangspoort.
Specificatie
Typenummer | U84408 |
Werkende golflengte | 1260 ~ 1650nm |
Test golflengte | 1310nm / 1550 nm |
Invoegverlies | ≤1.7 dB |
Herhaalbaarheid | ≤0.1 dB |
Retourverlies | ≥45dB |
Overspraak | ≥50dB |
Schakeltijd | ≤5ms(Aangrenzende sequentiële schakeling) |
Vezeltype | Enkele module |
Connector vorm | FC/APC |
Monitoring poort | RS232,USB,Ethernet poort |
Werkende voeding | AC 220V |
Bedrijfstemperatuur | -5 ~ + 65℃ |
Opslagtemperatuur | -40 ~ + 85°C |
